What is in the box?
| # | Description | Qty |
|---|---|---|

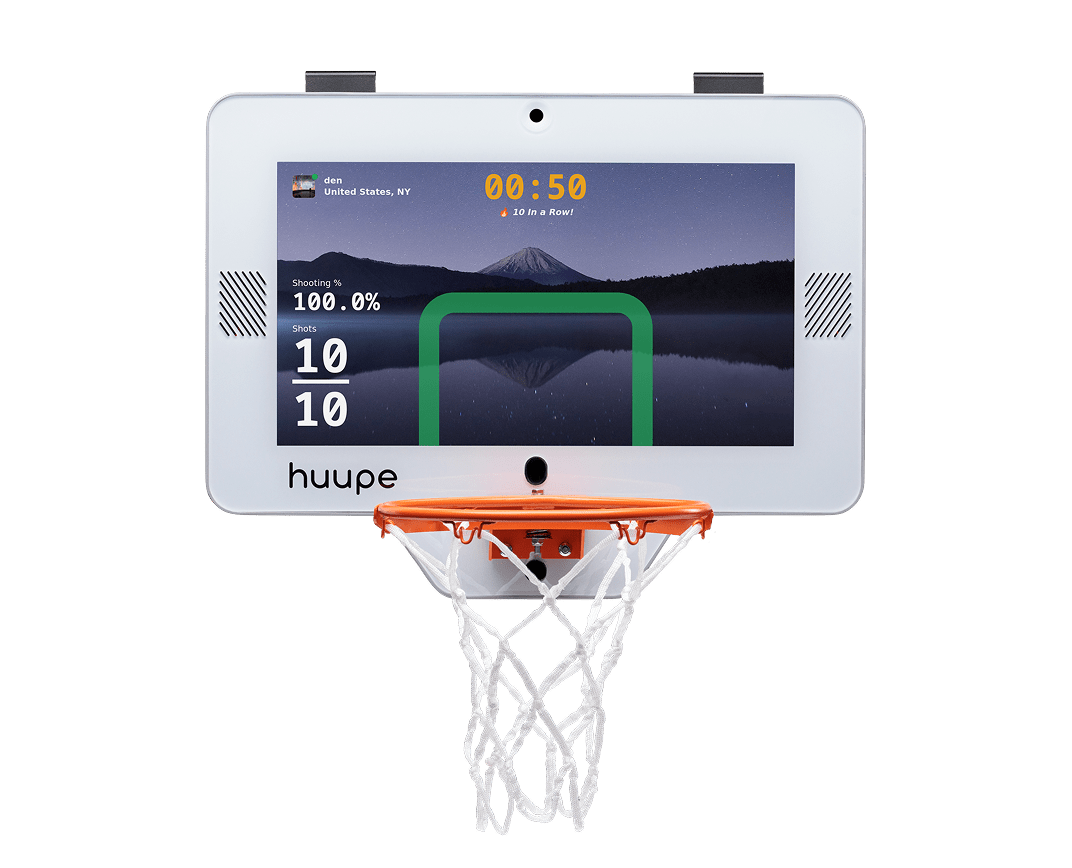

| 1 | Huupe Mini Backboard | 1 |
| 2 | Basketball Rim | 1 |
| 3 | Door Hooks | 1 |
| 4 | Ball | 1 |
| 5 | Pump | 1 |
| 6 | Remote Control | 1 |
| 7 | L-Shaped Phillip Head Screwdriver | 1 |
| 8 | Box End Wrench | 1 |
| 9 | Screws and Nuts | 5 each |
| 10 | Quick Start Guide | 1 |
| 11 | USB-C Cable | 1 |
| 12 | USB-C Brick | 1 |
USB-C Brick Power Requirement:
Power is provided through the included USB-C brick: 12V@3A (PDO), 9V@3A (PDO). Other power sources could damage the unit.
Assembly Instructions
Step 1: Attach the Rim to the Backboard
1.1. Use the provided wrench (item 8) to remove the preassembled nuts (item 6) on the backboard. Remove with a counter-clockwise turn. 1.2. Fit up the rim (item 5) onto the preassembled bolts (item 4) on the backboard. Attach the rim using the wrench (item 8) by rotating the nuts clockwise onto the preassembled bolts on the backboard.
Step 2: Attach the Door Hooks
2.1. Attach the door hooks (item 1) to the backboard with the provided screws (item 2) and screw tool (item 7), Turn clockwise to attach and tighten.
Step 3: Install the Backboard Over the Door
3.1. Hang the door hooks over the top of the desired door and hand-tighten the knob (item 3) by turning clockwise on each hook to hold it securely in place.
Step 4: Turn the Unit ON
4.1. Hold the power button (Item 11) for 2 seconds until the white light on the power button appears, then wait for the display to turn on.
4.2. Please note, it may take 10-45 seconds for the display to turn on. As long as the white light on the power button is on, the display will soon turn on.
Step 5: Inflate the Ball
Turning On the huupe mini
| Power On | Hold the button for 2 seconds until power button light turns white |
| Sleep | Hold the button for 2 seconds to enter sleep mode |
| Wake Up | Hold the button for 1 second |
| Shutdown | Hold the button for 10 seconds |
Power Button Indicator Light Behavior
| Light blinking |
Low battery |
|
Light ON |
System ON |
|
Light OFF |
System OFF |
DO NOT!
Warning: Do not attempt to dunk or hang from the rim. These actions could permanently damage the unit and cause injury to the user.
Warning: Do not poke the sensors. This action could cause the sensors to fail.
Warning: We recommend not playing while the unit is charging.
Optimal shot-tracking
- For optimal shot‑tracking performance, use ONLY the huupe ball and net. Generic balls and nets will not be tracked with the software. Replacement ball and net are available from the website.
- Make sure sensors are not obstructed.
Remote Control Overview
Power On / Off
Shot Tracking Overlay
Back
Home
Mute/Unmute Microphone
Mute/Unmute Volume
Input
Pairing the Remote Control
On the remote control, hold the VOL + and - button for 3 seconds to enter remote pairing mode.
Break-In Net
Make 20 shots to “loosen” up the net Applicable to any fresh net Net available on huupe website

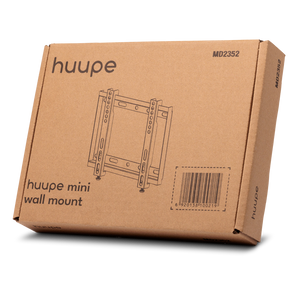

Alternate Installation: Wall Mount
FCC 2 Part Warning Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
