mini

User manual

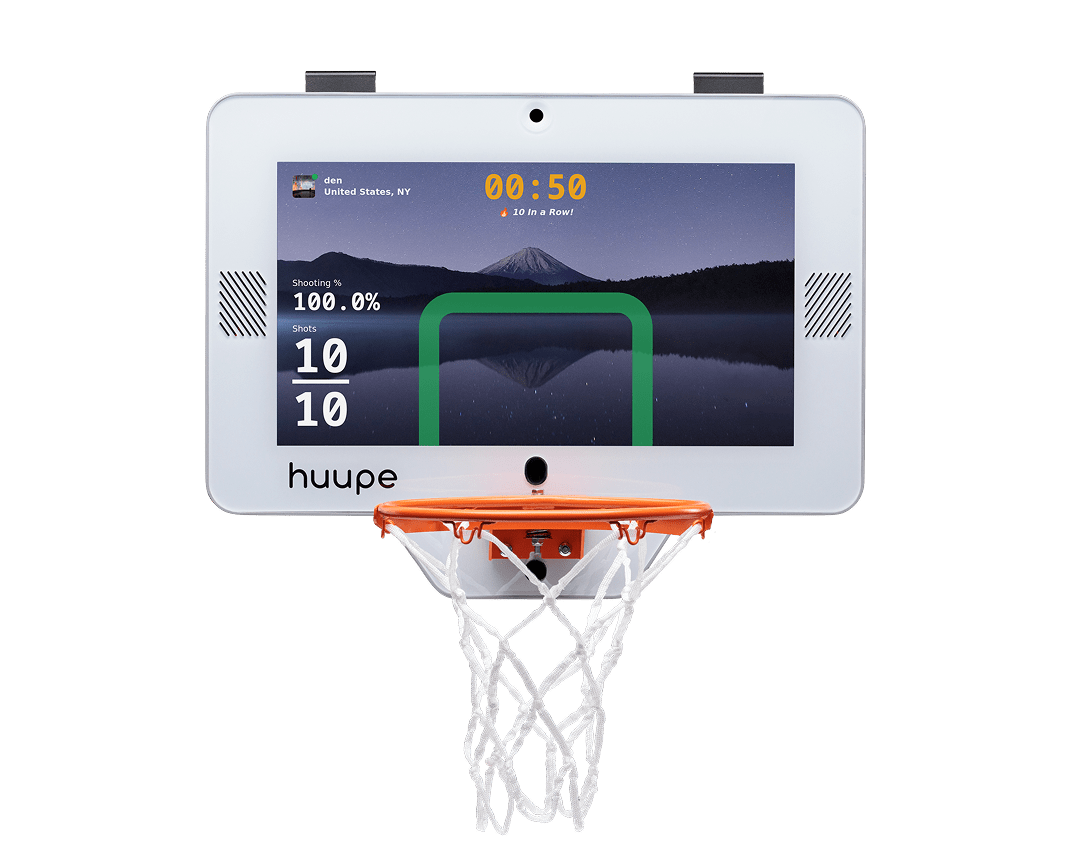

Product Overview

0304246200001-Edit-1 2.png__PID:b42ac4ec-c694-411e-99a2-5e2bd69fd45c

What is in the box?

manual1.png__PID:b793f39f-aa08-4299-8c97-c01c11143c2f
#DescriptionQty
1Huupe Mini Backboard1
2Basketball Rim1
3Door Hooks2
4USB-C Cable1
5Ball1
6Pump1
7Remote Control1
8L-Shaped Phillip Head Screwdriver1
9Box End Wrench1
10Screws and Nuts5 each
11Quick Start Guide1
12USB-C Brick1

USB-C Brick Power Requirement:

Power is provided through the included USB-C brick: 12V@3A (PDO), 9V@3A (PDO). Other power sources could damage the unit.

Assembly Instructions

manual2.png__PID:2774a0ee-65a7-4df8-9a59-1ed02ace9d7f

Step 1: Attach the Rim to the Backboard

1.1. Use the provided wrench (item 8) to remove the preassembled nuts (item 6) on the backboard. Remove with a counter-clockwise turn. 1.2. Fit up the rim (item 5) onto the preassembled bolts (item 4) on the backboard. Attach the rim using the wrench (item 8) by rotating the nuts clockwise onto the preassembled bolts on the backboard.

manual3.png__PID:e93891d9-b5b0-488a-939d-adfe0e9a19bc

Step 2: Attach the Door Hooks

2.1. Attach the door hooks (item 1) to the backboard with the provided screws (item 2) and screw tool (item 7), Turn clockwise to attach and tighten.

Step 3: Install the Backboard Over the Door

3.1. Hang the door hooks over the top of the desired door and hand-tighten the knob (item 3) by turning clockwise on each hook to hold it securely in place.

Step 4: Turn the Unit ON

4.1. Hold the power button (Item 11) for 2 seconds until the white light on the power button appears, then wait for the display to turn on.

manual4.png__PID:32d1f7ac-80c0-4966-83f1-1bfdd9eab8aa

4.2. Please note, it may take 10-45 seconds for the display to turn on. As long as the white light on the power button is on, the display will soon turn on.

Step 5: Inflate the Ball

manual5.png__PID:d9eab8aa-3856-4220-8951-9c74e1e51b8e

TURNING ON THE huupe mini

Power OnHold the button for 2 seconds until power button light turns white
SleepHold the button for 2 seconds to enter sleep mode
Wake UpHold the button for 1 second
Full ShutdownHold the button for 10 seconds

Power Button Indicator Light Behavior

◊ Light blinking: Low battery
◊ Light ON: System ON
◊ Light OFF: System OFF

DO NOT!

manual6.png__PID:7571521d-1625-4eba-9902-98a48805d24a

Warning: DO NOT ATTEMPT TO DUNK OR HANG FROM THE RIM. THESE ACTIONS COULD PERMANENTLY DAMAGE THE UNIT AND CAUSE INJURY TO THE USER.
Warning: DO NOT POKE THE SENSORS. THIS ACTION COULD CAUSE THE SENSORS TO FAIL.
Warning: WE RECOMMEND NOT PLAYING WHILE THE UNIT IS CHARGING.

OPTIMAL SHOT-TRACKING

◊ For optimal shot‑tracking performance, use ONLY the huupe ball and net. Generic balls and nets will not be tracked with the software. Replacement ball and net are available from the website.
◊ Make sure sensors are not obstructed.

Remote Control Overview

manual-remote1.png__PID:8e8f2036-4eea-4ebd-9e35-35a2a8259dc8

POWER ON/OFF

manual-remote2.png__PID:788e8f20-364e-4a6e-bd9e-3535a2a8259d

Shot Tracking Overlay

manual-remote3.png__PID:0e788e8f-2036-4eea-aebd-9e3535a2a825

Back

manual-remote4.png__PID:c00e788e-8f20-464e-aa6e-bd9e3535a2a8

Home

manual-remote5.png__PID:a5c00e78-8e8f-4036-8eea-6ebd9e3535a2

Mute/Unmute Microphone

manual-remote6.png__PID:a6a5c00e-788e-4f20-b64e-ea6ebd9e3535

Input

manual-remote7.png__PID:fda6a5c0-0e78-4e8f-a036-4eea6ebd9e35

Mute/Unmute Volume

Pairing the Remote Control

On the remote control, hold the VOL + and - button for 3 seconds to enter remote pairing mode.

Break-In Net

Make 20 shots to “loosen” up the net Applicable to any fresh net Net available on huupe website

Shoot In Front of the backboard

$$Attach a picture and shows where user should be standing$$

Alternate Installation: Wall Mount

SOLD SEPARATELY

FCC 2 Part Warning Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
